Sources Generales / Re: takumi12 - VAO (Vertex Array Object) SHADER MAIN 5.2

« Posteado: March 28, 2025, 11:25:21 PM »

Citar desde: Smudevelop on March 28, 2025, 10:48:06 PM

Citar desde: z0lik on March 28, 2025, 11:37:35 AM

You're missing the important part that was already mentioned earlier:

"The problem remains how to load the shader and correctly position the transformation values for the camera, view, and model." – takumi12

If your model doesn’t appear, it's not the shader itself — it's likely that your camera/view/projection setup is wrong, and the object is rendered outside the visible space.

Code: [Select]

void BMD::RenderVertexBuffer(int textureIndex, Mesh_t* m, int vertex_index, vec3_t* vertices, vec2_t* textCoords)
{
	const auto texture = Bitmaps.GetTexture(textureIndex);
	if (!texture) return;

	GLuint textureID = texture->TextureNumber;
	if (!glIsTexture(textureID)) return;

	glm::mat4 model = glm::mat4(1.0f);

	float distanceBehind = -1.0f;
	float heightAbove = 0.9f;
	float yaw = -0.8;// glm::radians(CameraAngle[0])* glm::radians(CameraFOV);

	glm::vec3 characterPosition = glm::vec3(CameraPosition[0], CameraPosition[1], CameraPosition[2]);

	glm::vec3 behindOffset = glm::vec3(
		cosf(yaw) * -distanceBehind,
		sinf(yaw) * -distanceBehind,
		0.0f
	);

	glm::vec3 cameraPosition = characterPosition + behindOffset;
	cameraPosition.z += heightAbove;

	glm::mat4 view = glm::lookAt(
		cameraPosition,
		characterPosition,
		glm::vec3(0.0f, 0.0f, 1.0f)
	);

	glm::mat4 projection = glm::perspective(glm::radians(CameraFOV),
	(float)WindowWidth / (float)WindowHeight, CameraViewNear, CameraViewFar * 1.4f);

	GLuint shader_id = gShaderGL->GetShaderId();
	glUseProgram(shader_id);

	// Matrici al vertex shader
	glUniformMatrix4fv(glGetUniformLocation(shader_id, "model"), 1, GL_FALSE, glm::value_ptr(model));
	glUniformMatrix4fv(glGetUniformLocation(shader_id, "view"), 1, GL_FALSE, glm::value_ptr(view));
	glUniformMatrix4fv(glGetUniformLocation(shader_id, "projection"), 1, GL_FALSE, glm::value_ptr(projection));

	// Texture
	glActiveTexture(GL_TEXTURE0);
	glBindTexture(GL_TEXTURE_2D, textureID);
	glUniform1i(glGetUniformLocation(shader_id, "texture1"), 0);

	glBindVertexArray(m->VAO);

	// Vertex
	glBindBuffer(GL_ARRAY_BUFFER, m->VBO_Vertices);
	glBufferSubData(GL_ARRAY_BUFFER, 0, vertex_index * sizeof(vec3_t), vertices);
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 0, (void*)0);
	glEnableVertexAttribArray(0);

	// Texture Coord
	glBindBuffer(GL_ARRAY_BUFFER, m->VBO_TexCoords);
	glBufferSubData(GL_ARRAY_BUFFER, 0, vertex_index * sizeof(vec2_t), textCoords);
	glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 0, (void*)0);
	glEnableVertexAttribArray(1);

	// Draw call
	glDrawElements(GL_TRIANGLES, vertex_index, GL_UNSIGNED_SHORT, 0);

	glBindVertexArray(0);
	glUseProgram(0);
}

Use this hardcoded snippet to test and adjust until your object becomes visible.

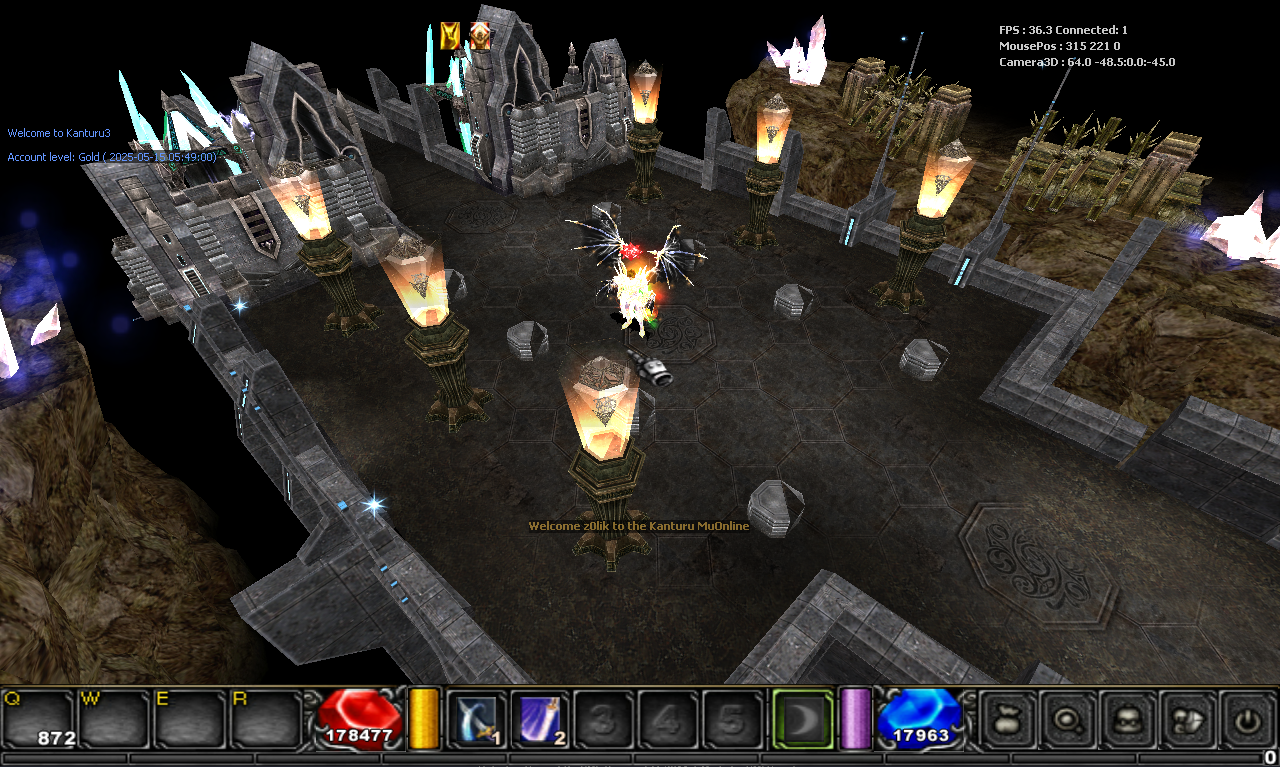

exactly like that , the transfom from camera pos is taken from the character's position and it is always returned to BodyOrigin

Samuel
Where do I call this function? void BMD::RenderVertexBuffer(int textureIndex, Mesh_t* m, int vertex_index, vec3_t* vertices, vec2_t* textCoords)

2

Sources Generales / Re: takumi12 - VAO (Vertex Array Object) SHADER MAIN 5.2

« Posteado: March 11, 2025, 02:05:15 AM »

Citar desde: Smudevelop on March 10, 2025, 08:33:20 PM
it will look like this
shader.vs
#version 330 core

layout(std140, binding = 0) uniform MeshState {
int RenderFlag;
float Alpha;
float BlendMeshTexCoordU;
float BlendMeshTexCoordV;
float BlendMeshLight;
};

uniform mat4 uModelView;
uniform mat4 uProjection;

layout(location = 0) in vec3 aPosition;
layout(location = 1) in vec2 aTexCoord;
layout(location = 2) in vec3 aNormal;

out vec2 TexCoord;
out vec3 LightEffect;

void main() {
gl_Position = uProjection * uModelView * vec4(aPosition, 1.0);

TexCoord = aTexCoord;
if (RenderFlag == 1) { // RENDER_TEXTURE
TexCoord.x += BlendMeshTexCoordU;
TexCoord.y += BlendMeshTexCoordV;
}

LightEffect = vec3(BlendMeshLight);
}

struct MeshRenderState {
int RenderFlag;
float Alpha;
float BlendMeshTexCoordU;
float BlendMeshTexCoordV;
float BlendMeshLight;
};

// make UBO with VAO
GLuint uboMeshState;
glGenBuffers(1, &uboMeshState);
glBindBuffer(GL_UNIFORM_BUFFER, uboMeshState);
glBufferData(GL_UNIFORM_BUFFER, sizeof(MeshRenderState), NULL, GL_DYNAMIC_DRAW);
glBindBufferBase(GL_UNIFORM_BUFFER, 0, uboMeshState);

void UpdateMeshUBO(int RenderFlag, float Alpha, float BlendMeshTexCoordU, float BlendMeshTexCoordV, float BlendMeshLight) {
MeshRenderState state = { RenderFlag, Alpha, BlendMeshTexCoordU, BlendMeshTexCoordV, BlendMeshLight };
glBindBuffer(GL_UNIFORM_BUFFER, uboMeshState);
glBufferSubData(GL_UNIFORM_BUFFER, 0, sizeof(MeshRenderState), &state);
glBindBuffer(GL_UNIFORM_BUFFER, 0);
}

void BMD::RenderMesh(int i, int RenderFlag, float Alpha, float BlendMeshTexCoordU, float BlendMeshTexCoordV, float BlendMeshLight, int MeshTexture)
{
if (i >= 0 && i < NumMeshs)
{
Mesh_t* m = &Meshs;
if (m->NumTriangles == 0)
return;

int Texture = IndexTexture[m->Texture];
if (MeshTexture != -1)
Texture = MeshTexture;
if (Texture == -1)
return;

// Update UBO before drawing
UpdateMeshUBO(RenderFlag, Alpha, BlendMeshTexCoordU, BlendMeshTexCoordV, BlendMeshLight);

glUseProgram(shaderProgram);

GLfloat modelView[16];
glGetFloatv(GL_MODELVIEW_MATRIX, modelView);
glUniformMatrix4fv(glGetUniformLocation(shaderProgram, "uModelView"), 1, GL_FALSE, modelView);

glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, Texture);
glUniform1i(glGetUniformLocation(shaderProgram, "uTexture"), 0);

glBindVertexArray(VAO);
glDrawElements(GL_TRIANGLES, m->NumTriangles * 3, GL_UNSIGNED_INT, 0);
glBindVertexArray(0);

glUseProgram(0);
}
}
